Description
Packaging:
Flight Case
Power:
Powercon
Description:
Flight Case
Powercon
Description:
Utilizing Chip On Board technology the Dotz Matrix light fixture creates smooth and rich RGB color mixing and can be used as a Wash/Bar or Pixel Mapped for stunning visual effects. Also features 0-100% dimming, color macros and built-in shows. Great for stage lighting, bands, or night clubs.

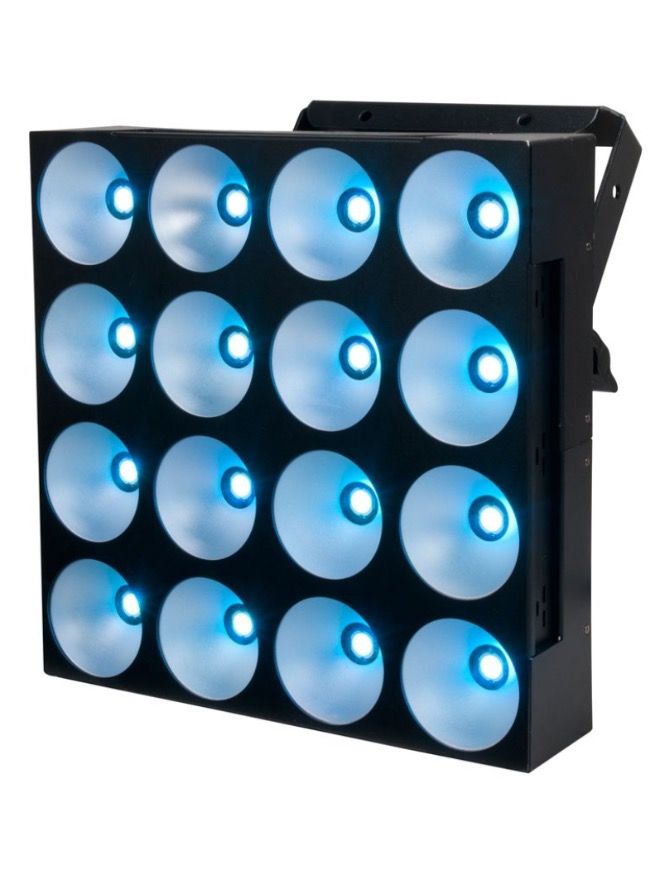

- 4 x 4 COB LED high output Wash/Blinder Matrix panel
- COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
- Use as Wash/Blinder or Pixel Mapped matrix for a stunning visual effect

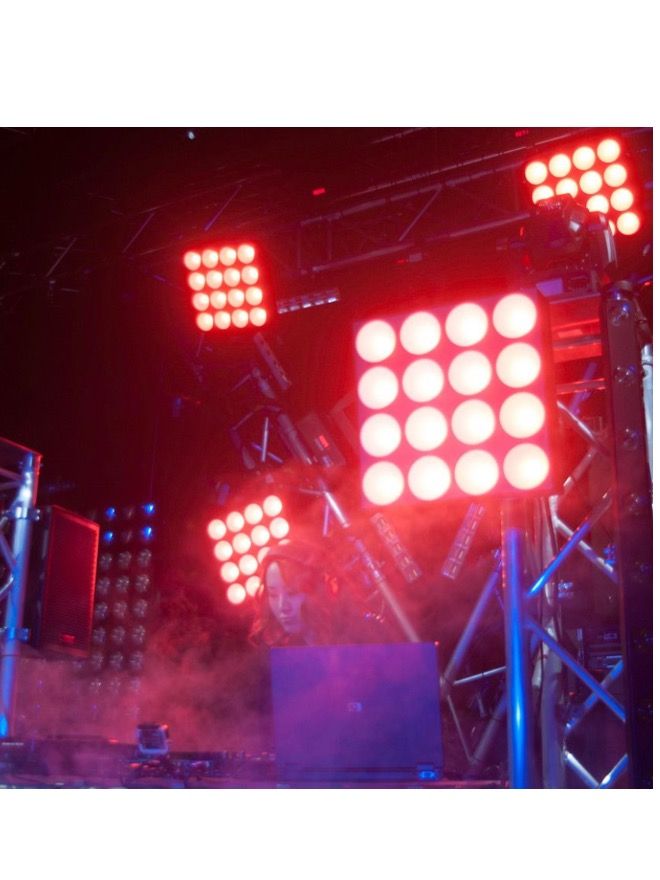

- Great for Stage Lighting, Bands or Night Clubs
- 5 DMX channel modes: 3, 6, 7, 48 & 53 channel
- Individual Pixel controllable in 48 & 53 channel DMX modes
- 4x Pixel Flip options changes pixel orientation
- 4x Operational modes: Auto, Sound Active, Manual RGB Dimmer, Static Color, and DMX-512
- RDM Compliant (Remote Device Management)
- Built-In preset colors and programs
- Flicker Free operation (No flickering on camera)
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- 60-degree beam angle

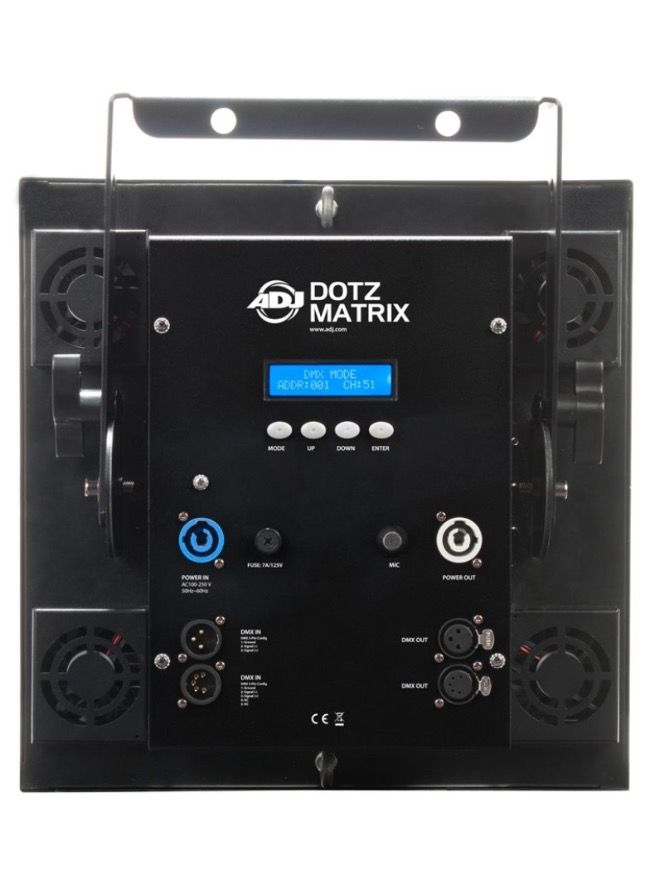

- 3 & 5-pin XLR chassis mount connectors for DMX linking
- With Wired Digital Communication Network
- Power AC IN/OUT to daisy chain power (up to 5 Dotz Matrix's @ 120V and 9 Dotz Matrix's @ 230V on one 20 amp circuit )
- Power Draw: 430W total (All LED's @ Full)
- 4-button DMX LCD display
- Single yoke allows fixture to be mounted
- Fan Cooled
- Light Source: 16x 30-Watt COB TRI LEDs (RGB: 3 in 1)
- 2630 LUX @2M; 730 LUX @4M (60-degree beam)
- Refresh Rate: 3.6KHz
- Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
- Dimensions (LxWxH): 13.75” x 6.75” x 14.75”/ 345 x 170 x 370mm
- Weight: 18 lbs. / 7.8 kgs.
