Description

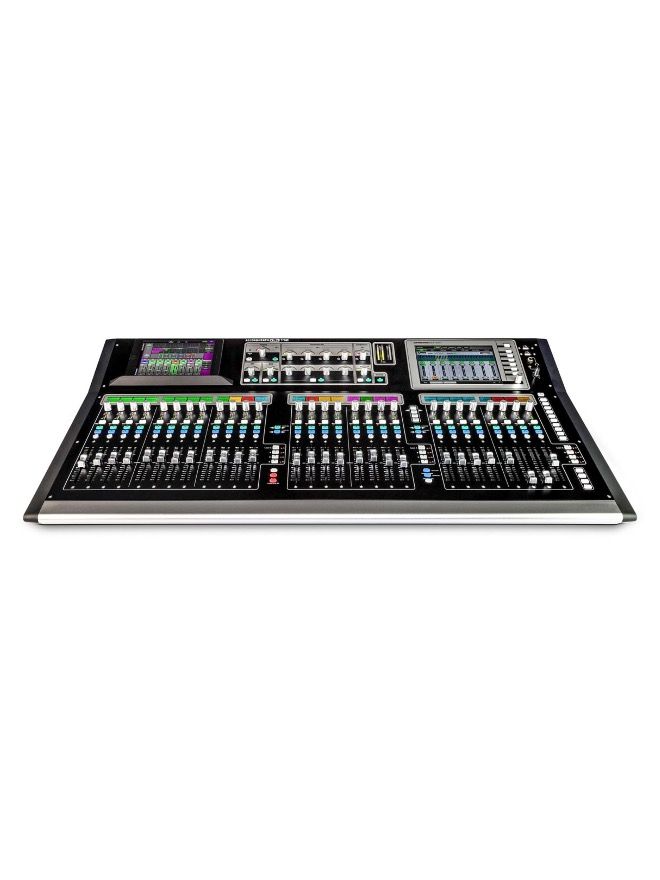

The Allen and Heath GLD-112 provides is an easy to use digital mixer with a 28 wide fader surface with buitl in scribble strips and a touch screen display. The GLD-112 provides 48 input processing channels, 8 stereo FX returns fed by our acclaimed FX emulations, 30 configurable buses, 20 mix processing channels, and DSP power to provide full processing without compromise.
Product Description:
The Allen and Heath GLD-112 provides is an easy to use digital mixer with a 28 wide fader surface with buitl in scribble strips and a touch screen display.The GLD-112 provides 48 input processing channels, 8 stereo FX returns fed by our acclaimed FX emulations, 30 configurable buses, 20 mix processing channels, and DSP power to provide full processing without compromise.
Supplied with: IEC power cable, flightcase
Specifications
Features:
Systems from 4 to 48 mics
Easy to use, quick to access, analogue style interface
dSNAKE Cat5 digital snake—up to 120m cable length
8.4 inch colour touchscreen for graphical view and setup
28 faders, 4 layers, 112 channel strips in a freely customizable layout
48 input channels into 30 assignable buses (Aux, Group, Matrix, Main, FX Send) into 20 mix outputs
8 stereo RackFX engines with dedicated ‘short’ returns with 4-band PEQ
Full processing on all inputs including trim, polarity, HPF, insert, gate, 4-band PEQ, compressor and delay
Full processing on all outputs including insert, PEQ, GEQ, compressor and delay
Deep processing embedded plugins including GEQ and compressor models
Automatic Mic Mixer with up to 44 microphone sources
LR, None (monitors), LR+M (sum), LR+M (bus), LCR main mix modes
USB stereo recording and playback
16 DCAs / mute groups
Built-in Talkback, RTA and Signal Generator
I/O module options for FOH/Monitor split, multitrack recording, link to iLive and more
MIDI In/Out and Ethernet Network port
Compatible with ME Personal Mixing System
High end 1dB step recallable mic/line preamps
User definable channel names and colours
Engineer’s mono Wedge and stereo IEM strips
Input, output and insert soft patchbays
Quick copy, paste and reset of mixes and parameters
Libraries, Scenes and Show memories with USB transfer
Scene Filters, crossfades and automated recalls
Get started quickly with Template Shows
Password protectable user profiles
Technical:

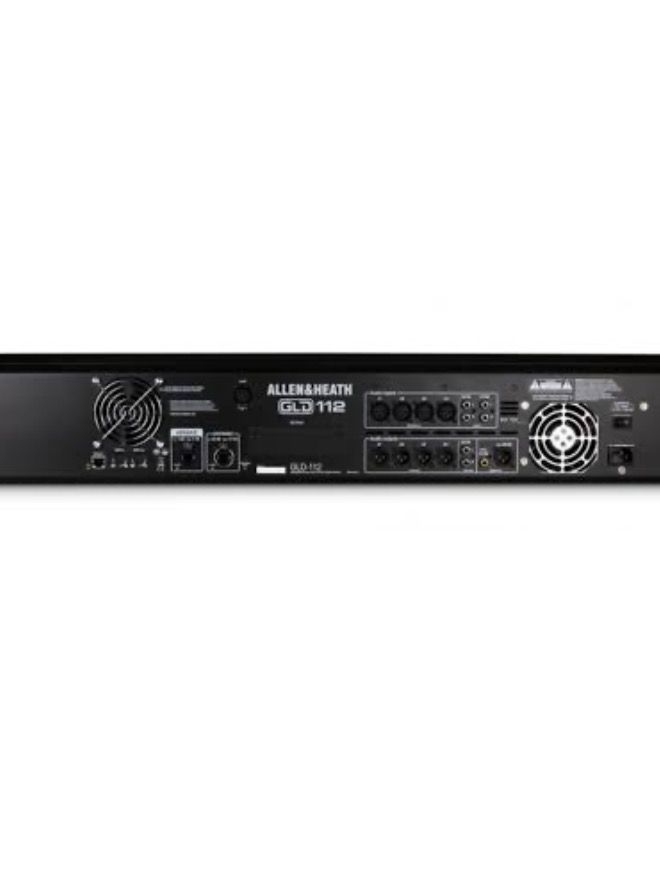

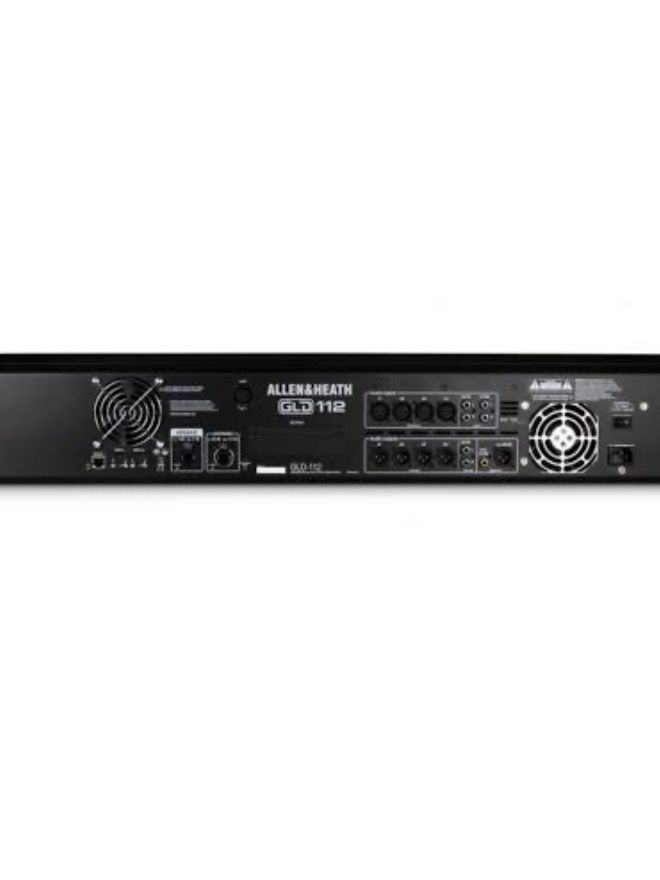

Input Connections: IEC Power, 4x XLR socket, 2x RCA L/R pairs, Midi In, D-Snake Connection (Ethercon/Ethernet), D-Snake Expander (Ethercon/Ethernet), 2x USB A Socket
Output Connections: 4x XLR plug, 1x RCA L/R pairs, 1x SPDIF digital output, AES 2 Channel Digital Out (XLR Plug)
D-Snake Connection over ethernet/ethercon of up to 120 meters
Physical:
Colour: Black
Cable/Tail Length (M): 1.0
Weight (KG) : 19.5
Dimensions (Length x Width x Height)(CM): 99.9 x 57.7 x 15.8
Power Consumption (W): 110
-
