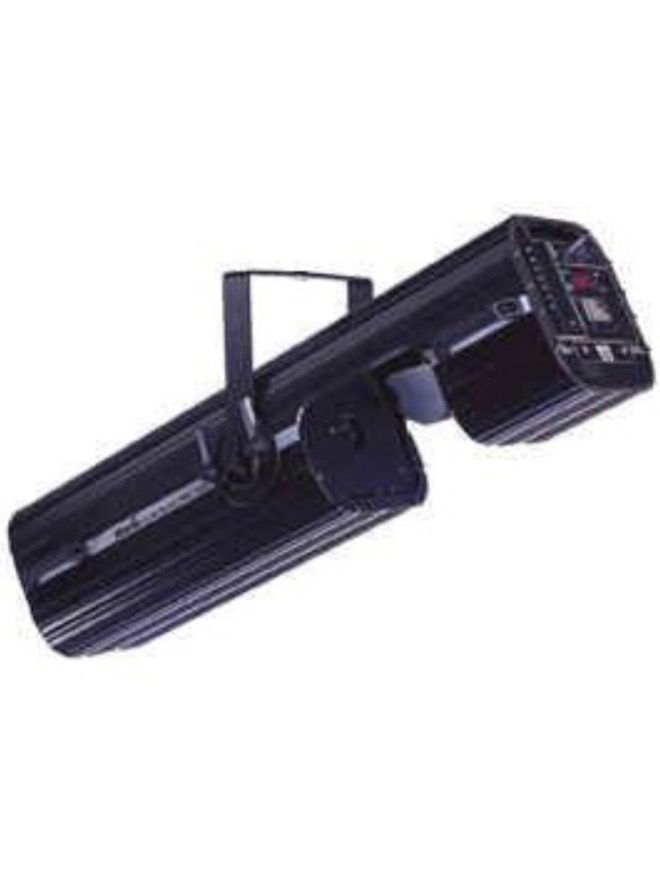

The Roboscan Pro 1220 features

LIGHT SOURCE

• 1200 Watt HMI or MSR lamp depending on model.

• Remote ON / OFF via controller.

  MOVEMENT

• Smooth and accurate movement at all speeds.

• 176 degree pan in 0.028 degree steps (6,240 positions).

• 85 degree tilt in 0.056 degree steps (1,504 positions).

• 8 and 16-bit tracking available via DMX 512.

• Straight diagonal movements via vector protocol.

  COLOR WHEELS

• Two separate and overlapping color wheels each with 9 dichroic colors plus white (only one wheel on Pro 1220 XR).

• Dual-direction, continuous rotation on both wheels.

• Micro-stepping resolution (12,800 steps/360°).

• Color mixing/splitting.

• Hot and cold Color Temperature Correction (CTC) on second color wheel (Pro 1220 CMYR

  and RPR only).

  CMY - INFINITE COLOR MIXING SYSTEM (PRO 1220 CMYR)

• Infinite color selection via CMY color mixing system.

• Instant color change or smooth color fades.

  GOBO WHEELS

• 4 rotating and indexable gobos, plus open.

• 9 fixed gobos plus open, with smooth gobo scrolling.

• Micro-stepping resolution (12,800 steps/360°).

• Fixed and rotating gobos can be combined.
